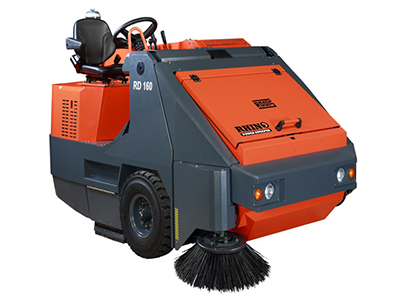

ROOTS RD160
HEAVY DUTY RIDE ON SWEEPER
-
Heavy Duty Ride-On Sweeper
-
Diesel Operated, Debris Compact System.
-
Area performance up to 17,300 m2/hour.
-
Ideal for harsh enviroment with large capacity hopper and an effective filter system.
-
Maximum cleaning productivity with a wide sweeping path.
-
Robustly built to sweep dirt, dust, metal shavings, bolts, wood and the likes.
-
Headlamps for safe operation in low lit areas.
-
High performance hydraulic system for both machine function and driving.
-
Rear view mirror, reverse horn and tail lamps are fitted as standard accessory for operator convenience and safety.
Techincal Specification
| Dimensions and Weight RD 160 | |
| Length without side broom | 2640 mm |
| Width without side broom | 1580 mm |
| Height up to canopy | 2255 mm |
| Dead weight | 1900 kg |
| Driving and Sweeping Performance | |
| Sweeping width with one side broom | 1650mm |
| Theoretical sweeping performance | 17300 m2/hr |
| Gradability | 18% |
| Filter System | |
| Filter area | 12 m2 |
| Main Broom | |
| Main broom length | 1220 / 360 mm |
| Side broom diameter | 660 mm |
| Dirt Hopper | |
| Hopper volume | 640 liters |
| Dump height | 1430 mm |
| Powertrain | |
| Type | Kubota, 4 Cylinder, Water Cooled, Diesel Engine |
| Cubic capacity | 1498 cc |
| Rated power | 26.5KW / 35 HP |
